Quabbin Multipair Instrumentation, Audio, Control, Broadcast, AWM 2464 – 22 AWG, 8 pair, unshielded, PVC, Chrome Gray

Part Number
7227
Belden Cross Reference
9160
Jacket Color
Chrome Gray
Colors shown are a representation only. If you require color matching please contact us direct.
Please enter your information to download the specifications sheet.
Buy Now
Request Information

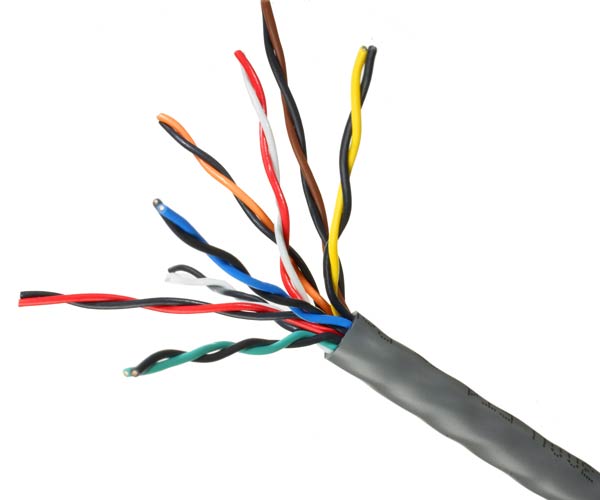

Representative image for Quabbin part number 7227

Representative image, may not match color or exact configuration of product.

Construction Details

AWG
22
Solid/Stranded
Solid
Pair Count
8
Insulation
Polyvinylchloride, .010"
Shield
No
Jacket Type
PVC
Jacket Color
Chrome Gray
Colors shown are a representation only. If you require color matching please contact us direct.
Overall Diameter
.294"

Ratings and Approvals

CM
CSA AWM FT4
AWM Style
2464
RoHS Compliant
Yes  Certification Link
Colors shown are a representation only. If you require color matching please contact us direct.

Physical Properties

Temp Max.
80
Voltage Rating Max.
300
