Quabbin Multiconductor Instrumentation, Audio, Control, Broadcast, AWM 2092 – 20 AWG, 2 conductor, shielded, PVC, Chrome Gray

Part Number
4540
Jacket Color
Chrome Gray
Colors shown are a representation only. If you require color matching please contact us direct.
Please enter your information to download the specifications sheet.
Buy Now
Request Information

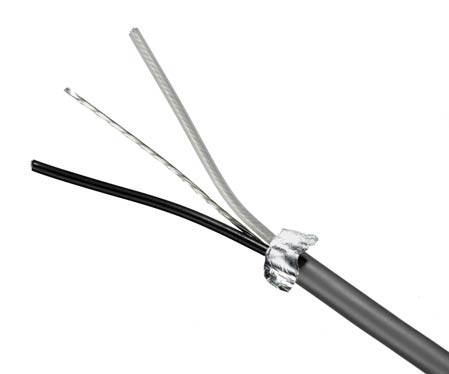

Representative image for Quabbin part number 4540

Representative image, may not match color or exact configuration of product.

Construction Details

AWG
20
Solid/Stranded
Stranded
Stranded Copper
7/28
Conductor Count
2
Insulation
Polypropylene, .009"
Shield
Yes
Jacket Type
PVC
Jacket Color
Chrome Gray
Colors shown are a representation only. If you require color matching please contact us direct.
Overall Diameter
.204"
Other Details
Drain

Ratings and Approvals

CM
AWM Style
2092
RoHS Compliant
Yes  Certification Link
Colors shown are a representation only. If you require color matching please contact us direct.

Physical Properties

Temp Max.
60 & 75
Voltage Rating Max.
300
